Airmax PondSeries Fountains
Airmax® PondSeries® Fountains
1/2HP - 2HP Floating Fountains
Airmax® PondSeries® Fountains
1/2HP - 2HP Floating Fountains
3 Industry Leading Spray Patterns Included
- Thermoset Fiberglass Control Panel
- High Flow, Energy Efficient
- Maintenance Free Motor
- Easy to Install & Maintain
- Thermostat Fiberglass GFCI Control Panel
- Integrated Cooling Shroud
- 100' - 600' Cord Options
- 3 Spray Patterns
- 3 Year Warranty
Overview
Airmax PondSeries Fountain Series
The PondSeries® is built and engineered for long lasting durability and superior performance. These fountains are maintenance free and have energy efficient motors along with a high flow design that showcases stunning, crisp spray patterns. The Airmax PondSeries comes in multiple sizes and all provide a beautiful aerating display.
Maintenance-free, Energy-Efficient Designmaximum motor life and durability, reducing yearly maintenance costs. An over sized intake screen adds an additional layer of protection to prevent clogging for uninterrupted viewing enjoyment, while providing your pond the benefit of aeration.
Features a fast-acting circuit breaker, which will shut off electrical power in the event of a ground fault. This control panel is designed with 2 programmable 24-hour digital timers, so you can independently program your fountain and lights to run up to 8 times a day. All control panels come set up for fountain and optional light set.
Power Cord LengthsFountains come with a 100' standard power cord, stainless-steel strain relief and underwater quick disconnect. The strain relief cable prevents the power cord from being damaged if the cord is snagged or tugged. Power cords are also available in 50' increments ranging from 100' - 600' lengths. (1/2 HP 115V, 200' max power cord length)
PondSeries Spray Patterns
The PondSeries Fountain comes standard with 3 spray patterns; Classic, Trumpet and Crown & Trumpet. More spray pattern nozzles are available in Single Arch, Double Arch, Double Arch & Geyser, Blossom, and Spinning Blossom. *Classic pattern is pre-installed and does not require a nozzle.
- 5.5'H x 13'W
- 9.5'H x 23'W
- 14'H x 28'W
- Trumpet: 8'H x 6'W
- Crown: 4.5'H x 32'W
- Trumpet: 11'H x 6'W
- Crown: 4.5'H x 32'W
- Trumpet: 13'H x 8'W
- Crown: 6.5'H x 38'W
- 12.5'H x 5'W
- 16'H x 6'W
- 20'H x 9'W
- 9'H x 14'W
- 8'H x 22'W
- 9'H x 24'W
- 1st Tier: 8'H x 8'W
- 2nd Tier: 4.5'H x 28'W
- 1st Tier: 9'H x 10'W
- 2nd Tier: 5'H x 34'W
- 1st Tier: 10'H x 10'W
- 2nd Tier: 5.5'H x 36'W
- Geyser: 9'H
- 1st Tier: 6'H x 7'W
- 2nd Tier: 4'H x 28'W
- Geyser: 8.5'H
- 1st Tier: 5.5'H x 13'W
- 2nd Tier: 4'H x 30'W
- Geyser: 9.5'H
- 1st Tier: 6'H x 15'W
- 2nd Tier: 4'H x 32'W
- 1st Tier: 5'H x 7'W
- 2nd Tier: 2'H x 13'W
- 1st Tier: 6.5'H x 10'W
- 2nd Tier: 2'H x 19'W
- 1st Tier: 8.5'H x 10'W
- 2nd Tier: 2.5'H x 22'W
- 1st Tier: 4.5'H x 7'W
- 2nd Tier: 2'H x 22'W
- 1st Tier: 5'H x 8'W
- 2nd Tier: 2'H x 24'W
- 1st Tier: 6'H x 13'W
- 2nd Tier: 2.5'H x 28'W
Fountains provide additional benefits. The sound of falling water helps cancel out unpleasant background noise such as traffic, barking dogs, alarms, AC equipment, etc. Fountains also add oxygen to your pond or lake as the tiny droplets contact the air and fall back into the water.
What's Included with the PondSeries?
The Classic Spray Pattern comes pre-installed as part of the PondSeries Fountain. Nozzle is not required. This beautiful full pattern provides relaxing sounds as the water breaks the surface.

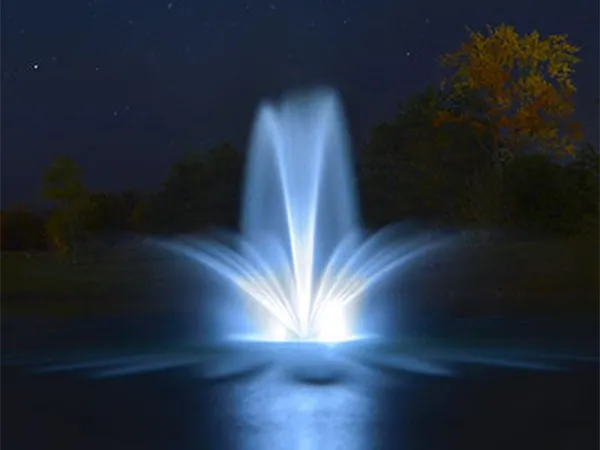

The Crown & Trumpet Spray Pattern combines the beauty of the arch and trumpet pattern creating a majestic display.

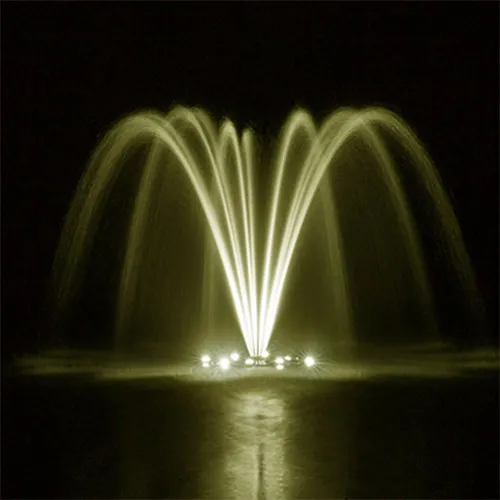

The Trumpet Spray Pattern provides a bountiful, tall burst of water giving you the tranquil sound of water.
Standard 100' power cord, underwater quick disconnect and stainless steel strain relief. Also available in 150' - 600' lengths, sold in 50' increments. 1/2 HP power cord only available up to 200'.
Airmax Control Panels include two outlets to power both the fountain and optional light kits. Programmable 24-hour digital timers allows you to independently program fountain and light run times.
Optional Features and Accessories
RGBW Color-Changing LED Light Sets
Now you can set the mood by changing the color including: white, blue, green, red and more. The Airmax RGBW Color-Changing LED Light Set is run by a wireless remote with a range of up to 200 feet. The Wireless remote allows you to change colors, dim/brighten the lights, control flash speed and run up to 9 preset programs. Requires: 2 AAA Batteries (Included).
The adjustable above waterline design and completely sealed light housing ensures a maintenance-free operation. Lights easily clip onto the PondSeries float making for a fast installation with no tools required. All light sets come standard with 100' power cord and strain relief: 150', 200', 250', 300', 350' and 400' power cord lengths are available. All light sets also include an underwater disconnect and stainless-steel braiding between light fixtures and power leads to protect the power cord. Available in 2, 4 and 8 Light Sets. 3-year warranty.
Power Cord Options
All Airmax floating fountains come with a standard power cord, however, if you have nuisance pond wildlife such as beavers, muskrats, or nutria that are notorious for chewing, you may want to explore our cord protection options. Replacement power cords can be expensive and time-consuming, so investing in cord protection is a great insurance policy for your fountain. Airmax power cords can be wrapped with our durable PolyFlex Cord Protection. If you are looking for something more substantial, we highly recommend the Stainless-Steel Cord Protection for the ultimate deterrent against power cord damage. Don't forget to ask your Airmax Professional Installer about cord protection for your fountain, you won't regret it!
Support
The PondSeries is a premier water fountain line, stepping up in class with higher horsepower options, larger spray patterns, and an industry-exclusive design. The PondSeries offers superior performance among pond fountains as well as lake fountains while remaining easy to install, maintain, and customize with a variety of optional spray patterns and full-spectrum, color-changing LED lights.
With multiple spray patterns to choose from, you can select the perfect fountain pattern to enhance the look of your outdoor space. Or choose several patterns. The quick-change spray nozzles allow you to switch your fountain display quickly and easily - no tools required.
Tech Specs
 1/2 HP |  1 HP |  2 HP | |
|---|---|---|---|
| Recommended Pond Size | Aerates up to 1/4 Acre | Aerates up to 1/2 Acre | Aerates up to 1 Acre |
| Float Diameter | 34 Inches | 46 Inches | 46 Inches |
| Fountain Volts / Running Amps | 115 Volts / 12 Amps 230 Volts / 6 Amps | 230 Volts / 7 Amps | 230 Volts / 12 Amps |
| Fountain Wattage | 1,380-Watts | 1,610-Watts | 2,760-Watts |
| Minimum Operating Depth | 36 Inches | 36 Inches | 36 Inches |
| Maximum Spray Height | 12.5 Feet | 16 Feet | 17 Feet |
| Included Patterns | Classic Crown & Trumpet Trumpet | Classic Crown & Trumpet Trumpet | Classic Crown & Trumpet Trumpet |
| Optional Spray Patterns | Single Arch Double Arch Double Arch & Geyser Blossom Spinning Blossom | Single Arch Double Arch Double Arch & Geyser Blossom Spinning Blossom | Single Arch Double Arch Double Arch & Geyser Blossom Spinning Blossom |
| Control Panel Voltage/Amp Rating | 230V / 20A | 230V / 20A | 230V / 20A |
| Control Panel Enclosure Type | Thermoset Fiberglass | Thermoset Fiberglass | Thermoset Fiberglass |
| Available Power Cord Lengths | (115V) 100', 150', 200' (230V) 100', 150', 200', 250', 300', 350',400', 450', 500', 550' & 600' | 100', 150', 200', 250', 300', 350',400', 450', 500', 550' & 600' | 100', 150', 200', 250', 300', 350', 400', 450', 500', 550' & 600' |
| Available Protective Cord Sleeves | Standard PolyFlex Stainless-Steel Braiding | Standard PolyFlex Stainless-Steel Braiding | Standard PolyFlex Stainless-Steel Braiding |
| Fountain & Control Panel Warranty | 3 Years | 3 Years | 3 Years |
| Daily Operating Cost (8 hrs/day)* | $1.10 | $1.29 | $2.21 |
Easy Installation
The Airmax PondSeries Fountains are designed to be installed with ease. No tools are required for assembly or when changing nozzles. The PondSeries Fountain is equipped with a stainless steel motor lead with an underwater quick disconnect cord for easy removal of the motor and float.

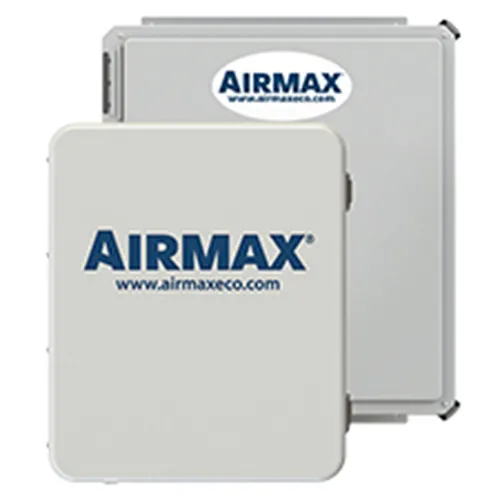

Control Panel
An ETL listed Airmax Control Panel is included with each fountain and is ready to power a single fountain plus an optional fountain LED light set kit. (Light kits sold separately) Airmax Control Panels are made of Thermoset Fiberglass designed for superior durability in the outdoors. Dual digital, programmable 24-hour digital timers allow for independent fountain and light run times, up to 8 run cycles. A ground-fault circuit interrupter feature will shut off electrical power in the event of a ground fault for added protection. Airmax Control Panels are covered under the system warranty and are available in 115V or 230V.
