Airmax LakeSeries Fountains
Airmax® LakeSeries® Fountains
Aerates Ponds up to 2.5 Acres
Airmax® LakeSeries® Fountains
Aerates Ponds up to 2.5 Acres
High Flow, Energy Efficient Design
- Multiple Available Spray Patterns
- 100'-600' Power Cord Options
- Float Designed for Stability
- Water Cooled Motor
- 5-Year Warranty
- Easy Installation & Maintenance
- Maintenance Free, Water Cooled Motor
- Innovative Float Design Increases Stability
- Multiple Industry Leading Spray Patterns Available
- 230V Single Phase & 460V Three Phase Options Available
Overview
Airmax LakeSeries Fountain Series
The LakeSeries® is a premier water fountain line, stepping up in class with higher horsepower options, larger spray patterns, and an industry-exclusive design. The LakeSeries offers superior performance among pond fountains as well as lake fountains while remaining easy to install, maintain, and customize with a variety of optional spray patterns and full-spectrum, color-changing LED lights.
With multiple spray patterns to choose from, you can select the perfect fountain pattern to enhance the look of your outdoor space. Or choose several patterns. The quick-change spray nozzles allow you to switch your fountain display quickly and easily - no tools required.
Powering the LakeSeries is a stainless-steel, continuous duty motor which is supported by an advanced pump and cooling chambers that extend motor life and maximize thermal transfer. All with no oil, seals, or bearings to change. Resulting in optimum motor performance and durability, while remaining energy efficient.

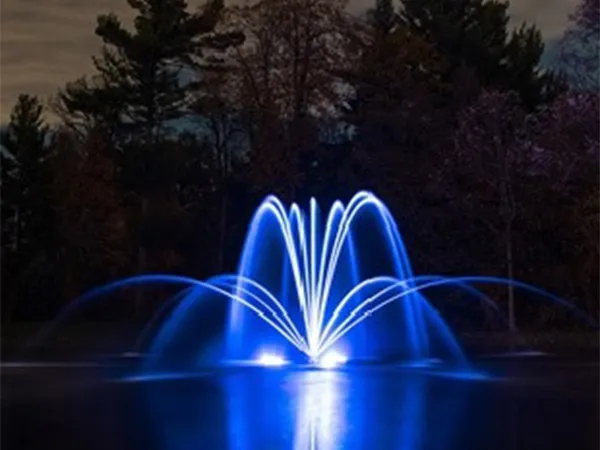

Spray PatternsCreate impressive displays with optional high-flow fountain spray patterns. LakeSeries decorative fountains feature multiple industry-leading spray patterns (Sold Separately). Choose from 9 different spray patterns including Classic, Trumpet, Crown & Trumpet, Gusher, Crown & Gusher, Single Arch, Double Arch, Double Arch & Geyser, and Blossom.

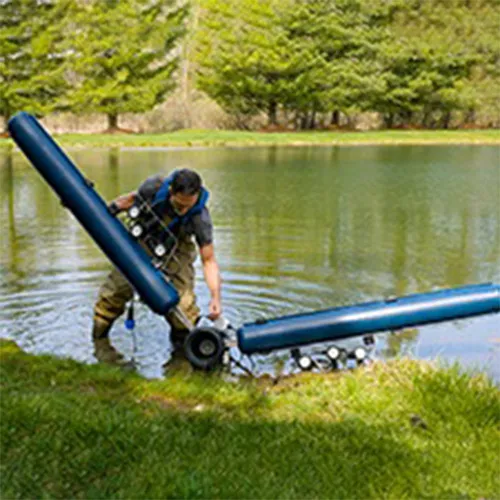

Easy InstallationThe Airmax LakeSeries floating pond fountains are engineered for easy installation using the exclusive ISP Float System. Fountains also feature a quick-change nozzle design, allowing you to change the look of your water feature quickly and easily, without tools.
Programmable Control PanelDurable control panel is designed with 2 programmable 24-hour digital timers, so you can independently program your fountain and lights to run up to 8 times a day. Airmax control panels feature motor and light GFCI protection for optimum safety in the event of a ground fault.
LakeSeries Spray Patterns
With multiple spray patterns to choose from, you can select the perfect fountain pattern to enhance the look of your outdoor space. Select one or more stunning patterns. The quick-change spray nozzles allow you to switch your fountain display quickly and easily without tools.
In addition to their visual beauty, decorative fountains provide a relaxing sound as the water gently splashes back into your pond or lake. Airmax fountains are designed to mimic the sounds of nature, like streams, waterfalls, and rain. All you will hear is falling water, not a whirring motor or droplets drumming on a float. Our streamlined float does not interfere with the sound of the water, and our efficient motor is whisper-quiet
- 11'H x 30'W
- 13'H x 30'W
- 16'H x 35'W
- 20'H x 9'W
- 23'H x 10'W
- 30'H x 10'W
- 35'H x 18'W
- 40'H x 20'W
- Trumpet: 14'H x 10'W
- Crown: 6'H x 46'W
- Trumpet: 15'H x 10'W
- Crown: 8'H x 50'W
- Trumpet: 24'H x 8'W
- Crown: 12'H x 56'W
- Trumpet: 28'H x 12'W
- Crown: 14'H x 60'W
- Trumpet: 34'H x 16'W
- Crown: 16'H x 65'W
- 21'H
- 28'H
- 35'H
- 40'H
- 50'H
- Gusher: 15'H
- Crown: 8'H x 52'W
- Gusher: 16'H
- Crown: 11'H x 50'W
- Gusher: 22'H
- Crown: 13'H x 60'W
- Gusher: 26'H
- Crown: 15'H x 75'W
- Gusher: 32'H
- Crown: 17'H x 100'W
- 13'H x 30'W
- 15'H x 40'W
- 20'H x 40'W
- 1st Tier: 13'H x 16'W
- 2nd Tier: 6'H x 46'W
- 1st Tier: 16'H x 12'W
- 2nd Tier: 8'H x 50'W
- 1st Tier: 20'H x 20'W
- 2nd Tier: 10'H x 60'W
- Geyser: 13'H
- 1st Tier: 7'H x 20'W
- 2nd Tier: 4'H x 30'W
- Geyser: 15'H
- 1st Tier: 9'H x 20'W
- 2nd Tier: 6'H x 40'W
- Geyser: 20'H
- 1st Tier: 11'H x 22'W
- 2nd Tier: 7'H x 48'W
- 1st Tier: 14'H x 16'W
- 2nd Tier: 2.5'H x 20'W
- 1st Tier: 16'H x 11'W
- 2nd Tier: 3'H x 24'W
- 1st Tier: 17'H x 17'W
- 2nd Tier: 5'H x 30'W
- 1st Tier: 9'H x 24'W
- 2nd Tier: 3'H x 34'W
- 1st Tier: 10'H x 28'W
- 2nd Tier: 3'H x 38'W
- 1st Tier: 11'H x 30'W
- 2nd Tier: 3.5'H x 42'W
Fountains provide additional benefits. The sound of falling water helps cancel out unpleasant background noise such as traffic, barking dogs, alarms, AC equipment, etc. Fountains also add oxygen to your pond or lake as the tiny droplets contact the air and fall back into the water.
What's Included with the LakeSeries?
All fountain power cords come standard with an underwater quick disconnect and stainless-steel strain relief. Power cords are available in 100' - 500' lengths.
All systems are equipped with a high-quality control panel, complete with dual digital timers to accommodate the fountain and lights. NEMA 3R rated. 5-year warranty.
All fountains are engineered with a quick-change nozzle design, allowing you to change the look of your water feature quickly and easily, with no tools required.
Airmax fountains have a bottom-draw design that pulls water from deeper in the pond, allowing for greater water circulation and aeration.
LakeSeries Fountains are available in 2 HP, 3 HP, and 5 HP options. With increased horsepower, comes the need for increased stability. Airmax engineers have solved this stability challenge with the innovative, industry-exclusive ISP Float System. The ISP (Independent Stability Pontoon) system provides maximum stability and balance during fountain operation.
Optional Features and Accessories

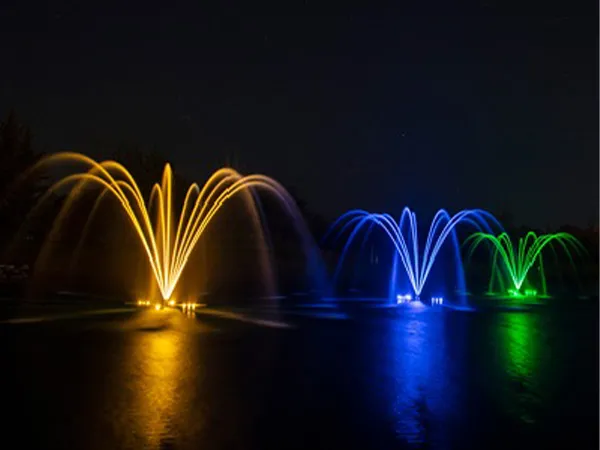

RGBW Color-Changing LED Light Sets
Set the mood by changing the color of your pond fountain lights, including white, blue, green, red, and more. The Airmax RGBW Color-Changing LED Light Set is run by a wireless remote with a range of up to 200 feet. The wireless remote allows you to change colors, dim/brighten the lights, control flash speed, and run up to nine preset programs. Requires: 2 AAA Batteries (Included).
The adjustable above waterline design and completely sealed light housing ensure a maintenance-free operation. Lights easily clip onto the LakeSeries float making for a fast installation with no tools required.
All light sets come standard with 100' power cord and strain relief: 150', 200', 250', 300', 350', 400', 450', 500', 550', and 600' power cord lengths are available. All light sets also include an underwater disconnect and stainless steel braiding between light fixtures and power leads to protect the power cord. Available in 9-Light Sets for the LakeSeries 2 HP and 3 HP models and in 12-Light Sets for the LakeSeries 5 HP model. 3-year warranty.
Power Cord Options
All Airmax floating fountains come with a standard power cord, however, if you have nuisance pond wildlife such as beavers, muskrats, or nutria that are notorious for chewing, you may want to explore our cord protection options. Replacement power cords can be expensive and time-consuming, so investing in cord protection is a great insurance policy for your fountain. Airmax power cords can be wrapped with our durable PolyFlex Cord Protection. If you are looking for something more substantial, we highly recommend the Stainless-Steel Cord Protection for the ultimate deterrent against power cord damage. Don't forget to ask your Airmax Professional Installer about cord protection for your fountain, you won't regret it!
Support
The LakeSeries is a premier water fountain line, stepping up in class with higher horsepower options, larger spray patterns, and an industry-exclusive design. The LakeSeries offers superior performance among pond fountains as well as lake fountains while remaining easy to install, maintain, and customize with a variety of optional spray patterns and full-spectrum, color-changing LED lights.
Lake Management Floating Fountains Aeration Irrigation Pump Systems Dallas Fort Worth Texas With multiple spray patterns to choose from, you can select the perfect fountain pattern to enhance the look of your outdoor space. Or choose several patterns. The quick-change spray nozzles allow you to switch your fountain display quickly and easily - no tools required.
Tech Specs
 2 HP |  3 HP |  5 HP |  7.5 HP | 10 HP | |
|---|---|---|---|---|---|
| Recommended Pond Size | Aerates up to 1/2 to 1 Acre | Aerates up to 1 to 1.5 Acre | Aerates up to 1.5 to 2.5 Acre | Aerates up to 3 Acres | Aerates up to 5 Acres |
| Minimum Operating Depth | 36 Inches | 48 Inches | 60 Inches | 48 Inches | 48 Inches |
| Maximum Spray Height | 21 Feet | 28 Feet | 35 Feet | 40 Feet | 50 Feet |
| 230V Power Cord Length Options | 100', 150', 200', 250', 300' 350', 400', 450', 500', 550', 600' | 100', 150', 200', 250', 300' 350', 400', 450', 500', 550', 600' | 100', 150', 200', 250', 300', 350', 400' (Call for cord sizing over 400') | (Call for 230V cord sizing) | (Call for 230V cord sizing) |
| 460V Power Cord Length Options | 100', 150', 200', 250', 300' 350', 400', 450', 500', 550', 600' | 100', 150', 200', 250', 300' 350', 400', 450', 500', 550', 600' | 100', 150', 200', 250', 300' 350', 400', 450', 500', 550', 600' | 100', 150', 200', 250', 300' 350', 400', 450', 500', 550', 600' | 100', 150', 200', 250', 300' 350', 400', 450', 500', 550', 600' |
| Motor Type | Water-Cooled / Stainless-Steel Continuous Duty | Water-Cooled / Stainless-Steel Continuous Duty | Water-Cooled / Stainless-Steel Continuous Duty | Water-Cooled / Stainless-Steel Continuous Duty | Water-Cooled / Stainless-Steel Continuous Duty |
| Fountain Voltage/Running Amps | 230V / 12A 460V / 3.4A | 230V / 16A 460V / 4.8A | 230V / 26A 460V / 8A | 230V 3 PH / 24A 460V / 12A | 230V 3 PH / 32A 460V / 16A |
| Control Panel Voltage/Amp Rating | 230V / 20A 460V / 25A | 230V / 30A 460V / 25A | 230V / 40A 460V / 25A | 230V 3 PH / 40A 460V / 25A | 230V 3 PH / 40A 460V / 25A |
| Control Panel Enclosure Type | Thermoset Fiberglass | Thermoset Fiberglass | Thermoset Fiberglass | Thermoset Fiberglass | Thermoset Fiberglass |
| Motor Lead Length | 34-Inch | 34-Inch | 34-Inch | 48-Inch | 48-Inch |
| Fountain Wattage / Hertz (230V & 460V) | 1,960-Watts / 60 Hz | 2,920-Watts / 60 Hz | 4,800-Watts / 60 Hz | 7,500-Watts / 60 Hz | 10,000-Watts / 60 Hz |
| Float Style | ISP Float System (Independent Stability Pontoon) | ISP Float System (Independent Stability Pontoon) | ISP Float System (Independent Stability Pontoon) | Twin ISP Float System (Independent Stability Pontoon) | Twin ISP Float System (Independent Stability Pontoon) |
| Float Length | (3) 60-Inch | (3) 60-Inch | (4) 60-Inch | (6) 60-Inch | (6) 60-Inch |
| Included Spray Patterns | None | None | None | None | None |
| Daily Operating Cost (8 hrs/day)* (230V & 460V) | $1.57 | $2.33 | $3.84 | $6.40 | $8.65 |
| Included System Components | Power Unit Floats Control Panel Power Cord | Power Unit Floats Control Panel Power Cord | Power Unit Floats Control Panel Power Cord | Power Unit Floats Control Panel Power Cord | Power Unit Floats Control Panel Power Cord |
| Warranty | 5-Year | 5-Year | 5-Year | 5-Year | 5-Year |
